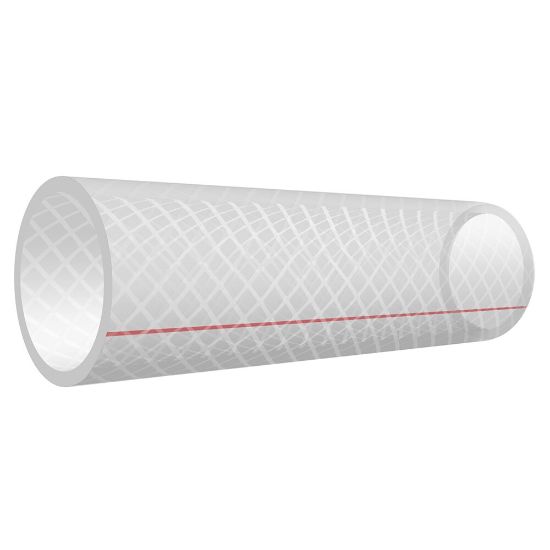

7581-381 - THORO-BRAID® PVC Clear General Service Hose, Series 7581

Name: 7581-381 - THORO-BRAID® PVC Clear General Service Hose, Series 7581
SKU: 7581-381
Price: 1.33 USD
Availability: InStock

Thoro-Braid PVC Clear General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 140°F and 355 psi, Series 7581

Manufacturer: Parker

Availability:

207 in stock

Olivette, MO

207

Partner Available:

1778 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7581-381

$1.33/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	315	Application	PVC Hose
Specifications Met	FDA	Hose Reinforcement Material	2 Plies of Textile with Longitudinal Red Tracer Yarn
Cover Structure	Smooth	Minimum Bend Radius	4 inch
Minimum Operating Temperature	14 °F	Cover Material	PVC
Cover Color	Transparent	Weight	0.16 kg/m
Package Type	Coil	Inside Diameter	3/8 inch
Maximum Operating Pressure	21.7 bar	Outside Diameter	15.2 mm
Maximum Operating Temperature	140 °F	Length per Package	300 ft
Division	Hose Products Division	Hose Inner Tube Material	Clear
Media	Air

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
