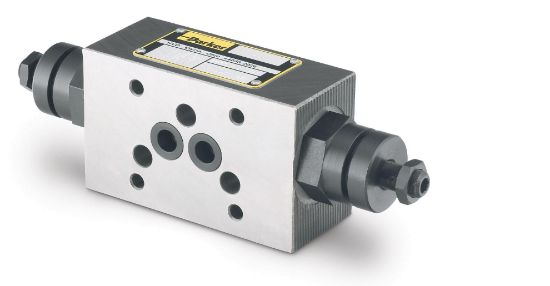

FM3BBKV - Throttle Check Valve - Series FM2 (N.A.)

Parker double-throttle check valves series FM in sandwich design offer an easy configuration of stack systems and provide a very good price-performance ratio. They are optionally available with a cylindrical needle for fine adjustment in NG06 and NG10.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	1 Limited Stock

SKU FM3BBKV

$690.14/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Maximum Operating Pressure	5000 PSI (345 BAR)	Needle Type	Standard
Flow Direction	Meter-in (inverted), Meter-out	Connection Size	CETOP 05 (NG10)
Maximum Flow Rate	30 GAL/MIN (113 L/MIN)	Flow Direction	Meter-in (inverted), Meter-out
Connection Size	CETOP 05 (NG10)	Minimum Operating Temperature	-4
Adjustment Mechanism	Knob	Cracking Pressure	5
Connection Type	N/A	Maximum Flow Rate	30
Division	Hydraulic Valve Systems Division	Seal Material	Fluorocarbon
Maximum Operating Temperature	158	Weight	5.2
Maximum Operating Pressure	5000	Body Material	Steel
Division	Hydraulic Valve Systems Division	Needle Type	Standard
Mounting Position	Unrestricted	Mounting Type	Sandwich plate
Product Series	Throttle check valve	Configuration	Single (B port only)
Actuation Type	Manually

Product resources

Literature and Reference Materials

MSG14-2500/US Industrial Hydraulic Valves (PDF)
