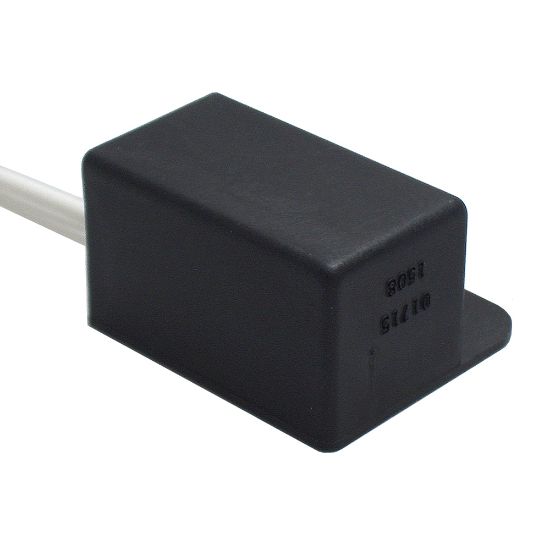

01715ECD - Tilt Switch - RM50

Name: 01715ECD - Tilt Switch - RM50
SKU: 01715ECD
Price: 66.00 USD
Availability: InStock

Parker's RM50 tilt switches detect angular movement in a single axis. They are designed using reed switch technology and no moving external components making them very robust and well suited for applications where mercury (Hg) cannot be used.

Manufacturer: Parker

Availability:

Backordered

Estimated Lead Time: 71 days

TOPEKA, KS

Partner Available:

Backordered

SKU 01715ECD

$66.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Model Number	RM50
Minimum Operating Temperature	-40	Switch Option	NO
Mounting Hole Diameter	6.0 mm (x2)	Contact Rating	20
Maximum Switching Voltage	20	Sensor Type	Tip/tilt
Ingress Protection Rating	67	Division	Electronic Motion and Controls Division
Maximum Operating Temperature	105	Hysteresis	± 10 ° max
Electrical Connection	DTM	Maximum Switching Current	1
Housing Material	Glass-filled Nylon
