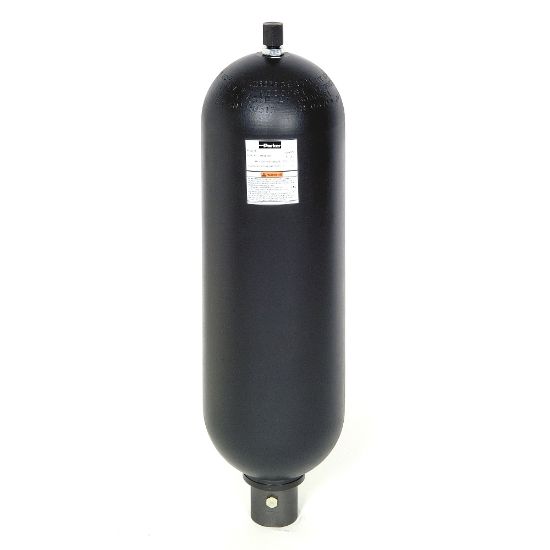

BT15B5UU01A1 - Transfer Barrier Accumulators - BT Series - (Americas)

Transfer Barrier accumulators provide fluid separation where two different media must transfer pressure between each other without mixing. Also used as an accumulator in series with gas bottles where size constraints exist.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU BT15B5UU01A1

$21,405.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Outlet Port Connection Type	NPT
Inlet Port Connection Type	NPT	Fluid Type	Oil Service
Elastomer Material	Nitrile	Inlet Port Size (inch)	3/4"
Outlet Port Size (inch)	2"	Volume (Gallons)	15 gallons
Maximum Operating Pressure (psi)	5,000 psi	Division	Accumulator and Cooler Division
Volume	56.7 L	Overall Length	1971.3 mm
Body Material	Chrome-molybdenum Alloy Steel	Specifications Met	CUTR
Diameter	9.63 inch	Maximum Operating Pressure	344.7 bar
Repairable	Bottom Repairable
