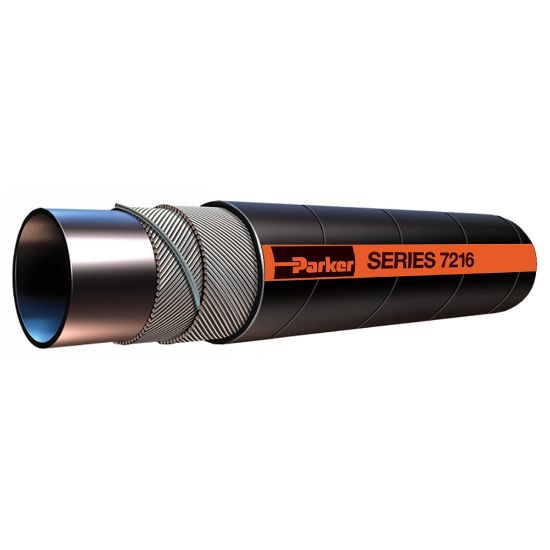

7216-2002 - TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE

Name: 7216-2002 - TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE
SKU: 7216-2002
Availability: InStock

Translite Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 150 psi.

Manufacturer: Parker

Availability:

46 in stock

Olivette, MO

Partner Available:

213 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7216-2002

POR

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	2	Cover Material	Nitrile
Media	Fuels (Biodiesel to B20 in dedicated service)	Design Factor	4:1
Application	Petroleum Transfer	Specifications Met	n/a
Minimum Bend Radius	6 inch	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	Multiple Plies of Textile with Wire Helix	Vacuum Pressure Rating	737 mm-Hg
Inside Diameter	2 inch	Nominal Hose Inside Diameter	50 mm
Weight	1.7 kg/m	Outside Diameter	64 mm
Maximum Operating Pressure	1 MPa	Maximum Operating Temperature	180 °F
Size	-32	Hose Inner Tube Material	Black
Division	Hose Products Division
