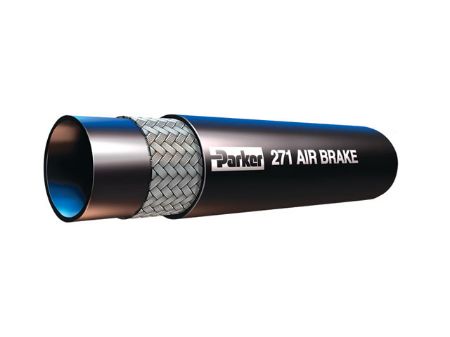

Transportation Air Brake Hose 225 PSI - 271 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 271 hose is a transportation air brake hose is capable of being crimped in the field as a replacement for factory-only made hose assemblies. The 271 hose has a pressure range of 225 PSI in all sizes with a fiber braid reinforcement. The 271 hose is designed, built, and tested to meet SAE J1402 A and DOT FMVSS 106 AIR BRAKE - A specifications. Sizes range from 3/8” to ½” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 225 PSI in all sizes
• Field attachable or Parkrimp fittings to fit your specific needs
Applications:
• Air brake systems
Compatible Fittings:
• 25 series fittings
Read More...Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 225 PSI in all sizes
• Field attachable or Parkrimp fittings to fit your specific needs
Applications:
• Air brake systems
Compatible Fittings:
• 25 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Cover Material | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Hose Cover Type | Nominal Hose Inside Diameter | Material | Pkg Qty/UOM | Pkg Qty | Inner Diameter | Working Pressure | Parker Group | Inch/Metric | Parker Division | Inner Diameter Inch/mm | Inner Diameter | Material | Application | Hose Pressure Range | Hose Category | Working Pressure Range | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 271-6 | Backordered | 2048 in stock | $3.60/foot | FT | FT | -6 | Hose Products Division | Air Brake Systems | Air (Air Brake Systems) | 1.6 MPa | 100 °C | -50 °F | SAE J1402, Class A | 0.30 kg/m | 0.750 inch | Synthetic Rubber | 3/8 inch | 25 Series | 45 mm | Synthetic Rubber | 1 or Multiple Braids of Fiber | Standard Cover | 10 mm | Rubber | 1 FT | 1 | 0.375 Inch | 225 PSI (16 bar) | Fluid Connector | Inch | Hose Products | Inch | 0.375 Inch | Rubber | Transportation | Low | Transportation | 100 to 249 PSI (7 to 17 bar) | 271 | |
| 271-8 | Backordered | 399 in stock | $5.79/foot | FT | FT | -8 | Hose Products Division | Air Brake Systems | Air (Compressed Air with traces of Oil) | 1.6 MPa | 100 °C | -50 °F | SAE J1402, Class A | 0.26 lb/ft | 0.880 inch | Synthetic Rubber | 1/2 inch | 25 Series | 50 mm | Synthetic Rubber | 1 or Multiple Braids of Fiber | Standard Cover | 12 mm | Rubber | 1 FT | 1 | 0.5 Inch | 225 PSI (16 bar) | Fluid Connector | Inch | Hose Products | Inch | 0.5 Inch | Rubber | Transportation | Low | Transportation | 100 to 249 PSI (7 to 17 bar) | 271 |
