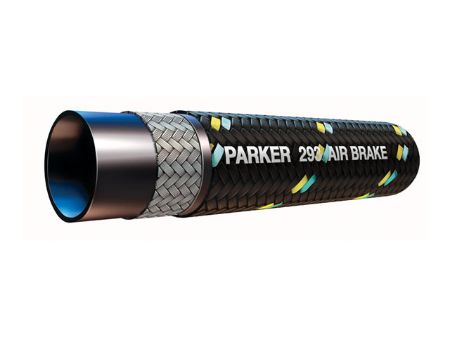

Transportation Air Brake Hose 450-500 PSI - 293 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 293 hose is a transportation air brake hose that has a pressure range of 450-500 PSI and is reinforced with one fiber braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 293 hose is designed, built, and tested to meet D.O.T. performance specifications. Sizes range from 3/16” to 7/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 450-500 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• DOT FMVSS 106 AIR BRAKE - AI certification
• Compatible with temperatures up to 302 ͦF
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings
• 21 series fittings
• 23 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Cover Material | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Cover Color | Nominal Hose Inside Diameter | Material | Pkg Qty/UOM | Pkg Qty | Inner Diameter | Working Pressure | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Application | Hose Pressure Range | Hose Category | Working Pressure Range | Mating End Fitting Series | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 293-10 | Backordered | 198 in stock | $19.45/foot | FT | FT | -10 | Hose Products Division | Diesel Fuels | Petroleum Hydraulic Fluids | 450 psi | 302 °F | -50 °C | SAE J1402, Class AI | 0.2 lb/ft | 21.1 mm | Polyamide (PA) Abrasion Resistant | 1/2 inch | 23 Series | 2 inch | PKR® Rubber | Braid of Fiber | Black with Gold and Teal accent | 12 mm | Rubber | 1 FT | 1 | 0.5 Inch | 450 PSI (30 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Transportation | Low | Transportation | 250 to 499 PSI (17 to 34 bar) | 26, 21, 23 | 293 | |
| 293-12 | Backordered | 249 in stock | $22.73/foot | FT | FT | -12 | Hose Products Division | Petroleum Base Hydraulic Fluids | Lubricants | 3.1 MPa | 150 °C | -58 °F | SAE J1402, Class AI | 0.22 lb/ft | 24.3 mm | Polyamide (PA) Abrasion Resistant | 16 mm | 26 Series | 2-1/2 inch | PKR® Rubber | Braid of Fiber | Black with Gold and Teal accent | 16 mm | Rubber | 225 FT | 225 | 0.625 Inch | 450 PSI (30 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Transportation | Low | Transportation | 250 to 499 PSI (17 to 34 bar) | 26, 21, 23 | 293 | |
| 293-16 | Backordered | 2 Limited Stock | $24.20/foot | FT | FT | -16 | Hose Products Division | Antifreeze Solutions | Coolants | 450 psi | 302 °F | -50 °C | D.O.T. FMVSS 106, Class AI Air Brake | 0.25 lb/ft | 30.6 mm | Polyamide (PA) Abrasion Resistant | 7/8 inch | 23 Series | 3-1/4 inch | PKR® Rubber | 1 Braid of Fiber | Black with Gold and Teal accent | 22 mm | Rubber | 140 FT | 140 | 0.875 Inch | 450 PSI (30 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.875 Inch | Inch | Rubber | Transportation | Low | Transportation | 250 to 499 PSI (17 to 34 bar) | 26, 21, 23 | 293 | |
| 293-4 | Backordered | Backordered | $9.52/foot | FT | FT | -4 | Hose Products Division | Petroleum Base Hydraulic Fluids | Fuels - Check fuel type with our catalogue chart. | 3.5 MPa | 150 °C | -58 °F | SAE J1402, Class AI | 0.1 lb/ft | 0.490 inch | Polyamide (PA) Abrasion Resistant | 3/16 inch | 23 Series | 15 mm | PKR® Rubber | 1 Braid of Fiber | Black with Gold and Teal accent | 5 mm | Rubber | 1 FT | 1 | 0.188 Inch | 500 PSI (30 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.188 Inch | Inch | Rubber | Transportation | Low | Transportation | 500 to 999 PSI (34 to 69 bar | 26, 21, 23 | 293 | |
| 293-6 | Backordered | Backordered | $10.75/foot | FT | FT | -6 | Hose Products Division | Diesel Fuels | Fuels - Check fuel type with our catalogue chart. | 3.5 MPa | 150 °C | -58 °F | SAE J1402, Class AI | 0.15 lb/ft | 0.620 inch | Polyamide (PA) Abrasion Resistant | 8 mm | 21 Series | 25 mm | PKR® Rubber | 1 Braid of Fiber | Black with Gold and Teal accent | 8 mm | Rubber | 300 FT | 300 | 0.313 Inch | 500 PSI (30 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | Transportation | Low | Transportation | 500 to 999 PSI (34 to 69 bar | 26, 21, 23 | 293 | |
| 293-8 | Backordered | Backordered | $11.74/foot | FT | FT | -8 | Hose Products Division | Lubricating Oils | Lubricants | 500 psi | 302 °F | -50 °C | D.O.T. FMVSS 106, Class AI Air Brake | 0.27 kg/m | 18.7 mm | Polyamide (PA) Abrasion Resistant | 10 mm | 26 Series | 1-1/2 inch | PKR® Rubber | 1 Braid of Fiber | Black with Gold and Teal accent | 10 mm | Rubber | 225 FT | 225 | 0.406 Inch | 500 PSI (30 bar) | 26, 21, 23 | Fluid Connector | Inch | Hose Products | 0.406 Inch | Inch | Rubber | Transportation | Low | Transportation | 500 to 999 PSI (34 to 69 bar | 26, 21, 23 | 293 |
