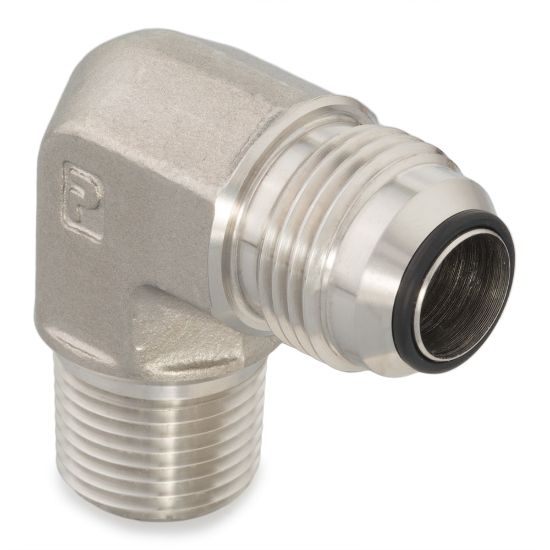

6-6 CTXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 6-6 CTXO-SS

$57.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	3/8-18
Shape	90° Elbow	Connection 2 Style	Male NPT/NPTF
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Male 37° Flare with O-ring Seal on Nose
Connection 1 Tube O.D. (inch)	3/8	Maximum Dynamic Pressure	6000 psi
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	na
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Division	Tube Fittings Division	Connection Type	Soft Seal Stainless Steel 37° Flare
Connection 3 Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
