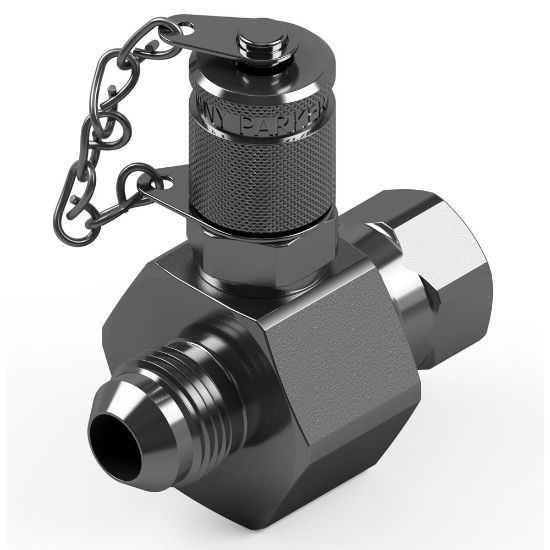

10-4R6P4MXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 10-4R6P4MXS

$362.65/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube Outside Diameter	na
Connection 3 Size	na	Connection 1 Size	3/4-16
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	O-Ring Material	na
Shape	Test point connector with EMA3 test point	Body Material	Steel
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection Type	Male/Female 37° Flare	Division	Tube Fittings Division
Connection 2 Size	na	Connection 2 Thread Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
