*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

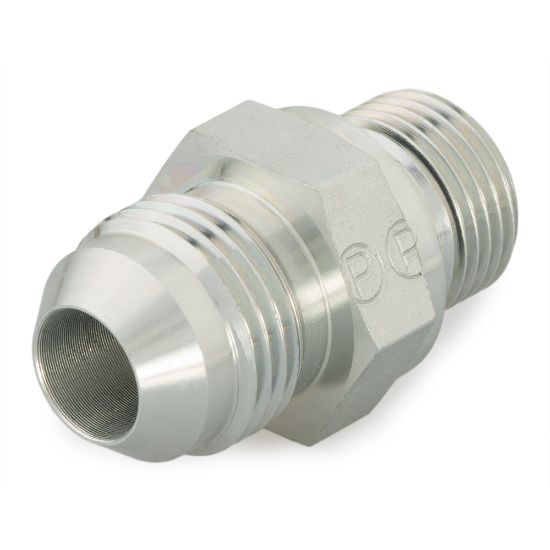

10-6F42EDMXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU 10-6F42EDMXSS

$99.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	na
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Shape	Straight	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	5/8 inch	Division	Tube Fittings Division
Connection Type	Tube to BSPP-ED with Metric Hex	Connection 2 Tube Outside Diameter	na
Connection 2 Size	Male BSPP EOlastic Seal	Connection 2 Thread Size	3/8-19 inch
Connection 4 Size	na	Connection 3 Size	na
Maximum Dynamic Pressure	5000 psi	Connection 1 Size	Male 37° Flare

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
