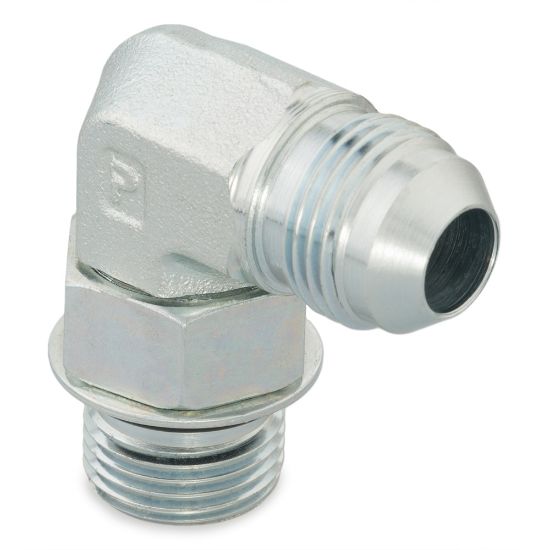

10 C5OX-S ZJ - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 10 C5OX-S ZJ

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Connection 3 Thread Size	na	Specifications Met	SAE J514
Connection 3 Tube Outside Diameter	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Body Material	Steel, Zinc Nickel
Shape	90° Elbow	Connection Type	37° Flare
Connection 4 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 2 Size	Male SAE-ORB	Connection 2 Thread Size	na
Connection 3 Size	na	Connection 2 Tube Outside Diameter	na
Maximum Dynamic Pressure	5000 psi	Connection 4 Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
