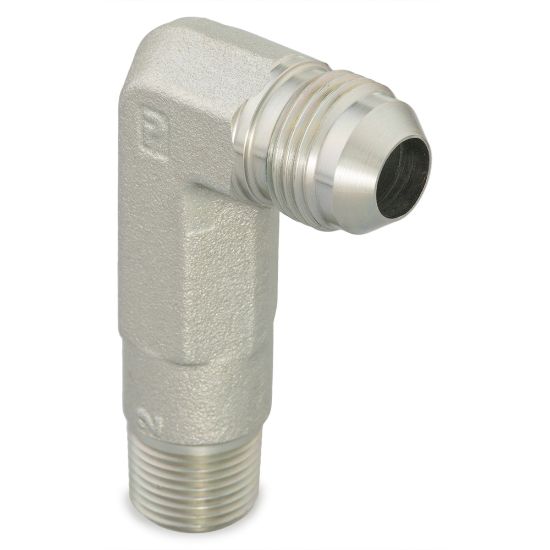

10 CCCTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 26 days
Partner Available:	30 in stock

SKU 10 CCCTX-S

$48.62/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Maximum Dynamic Pressure	5000 psi	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	Connection 3 Thread Size	na
O-Ring Material	na	Body Material	Steel
Connection 1 Tube Outside Diameter	5/8 inch	Shape	90° Elbow
Connection 4 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection Type	37° Flare	Connection 2 Thread Size	1/2-14 inch
Connection 2 Size	Male NPT/NPTF	Connection 2 Tube Outside Diameter	na
Connection 3 Size	na	Connection 4 Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
