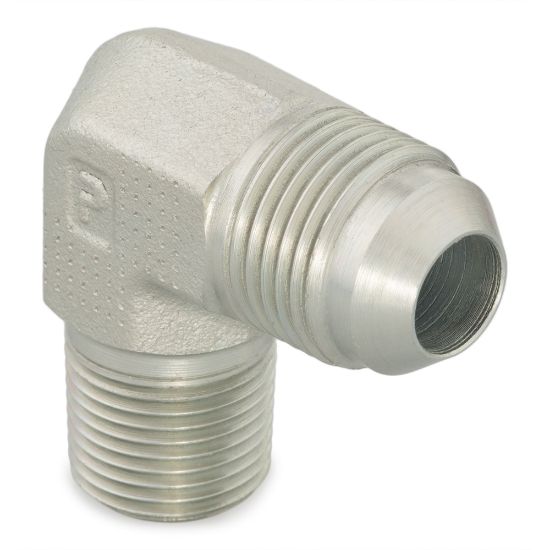

10 CTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 10 CTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 CTX-S
Price: 12.64 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:

40 in stock

TOPEKA, KS	9
Olivette, MO	8
WICHITA, KS	5
Joplin, MO	4
Springfield, MO	3
Decatur, IL	3
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2
Olivette, MO	2

Partner Available:

1316 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10 CTX-S

$12.64/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.06168277877697842 lb
Specifications Met	SAE J514	O-Ring Material	na
Shape	90° Elbow	Connection 4 Tube Outside Diameter	na
Body Material	Steel	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Division	Tube Fittings Division	Connection Type	37° Flare
Connection 2 Thread Size	na	Connection 2 Size	Male NPT/NPTF
Connection 2 Tube Outside Diameter	na	Connection 3 Size	na
Connection 4 Size	na	Connection 1 Size	Male 37° Flare
Maximum Dynamic Pressure	5000 psi	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
