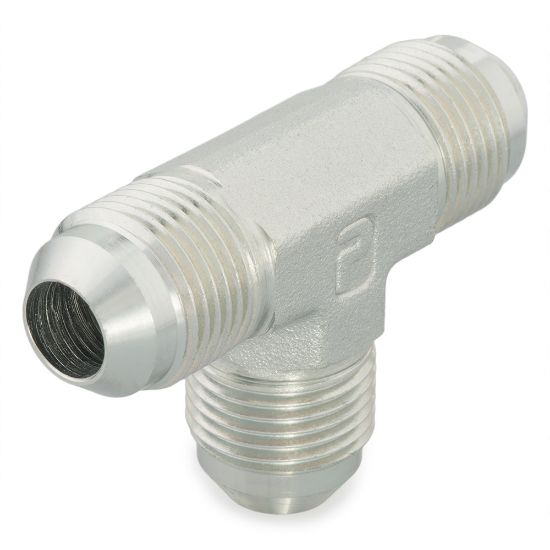

10 JTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 10 JTX-B

$102.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	14, 15, 16 mm
O-Ring Material	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Body Material	Brass	Connection 4 Tube Outside Diameter	na
Shape	Tee	Connection Type	37° Flare
Connection 2 Size	Male 37° Flare	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Tube Outside Diameter	5/8 inch
Connection 3 Size	Male 37° Flare	Maximum Dynamic Pressure	3300 psi
Connection 1 Size	Male 37° Flare	Connection 4 Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
