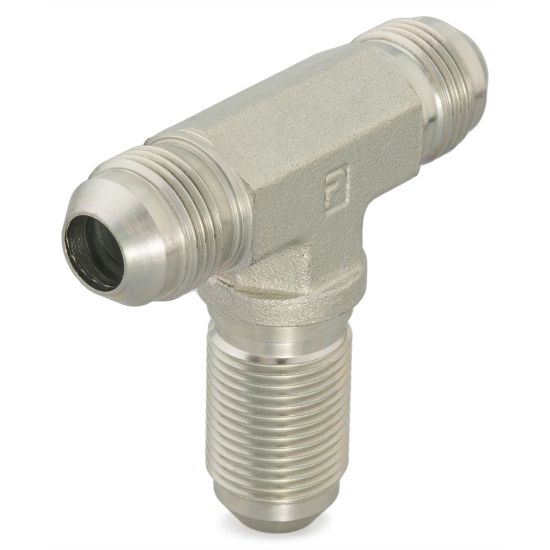

10 WJTX-WLN-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 10 WJTX-WLN-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 WJTX-WLN-S
Price: 62.27 USD
Availability: LimitedAvailability

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:

2 Limited Stock

TOPEKA, KS

Partner Available:

54 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10 WJTX-WLN-S

$62.27/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	5/8 inch	Shape	Tee
Connection Type	37° Flare	Division	Tube Fittings Division
Connection 2 Size	Male 37° Flare	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	14, 15, 16 mm	Connection 4 Size	na
Connection 3 Size	Male 37° Flare Bulkhead with Locknut	Maximum Dynamic Pressure	5000 psi
Connection 1 Size	Male 37° Flare	Connection 3 Thread Size	na
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	5/8 inch
O-Ring Material	na	Body Material	Steel

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
