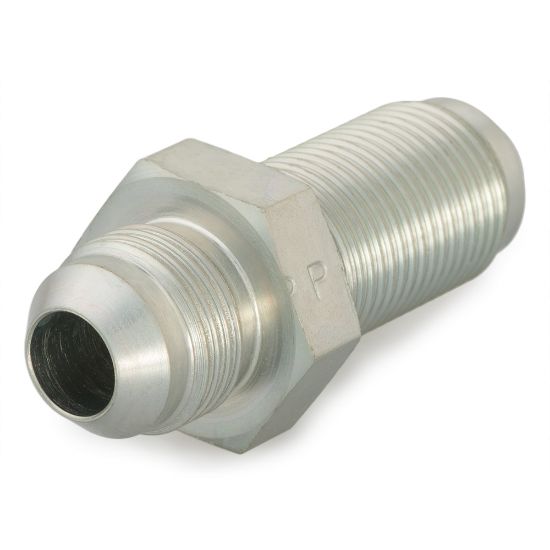

10 WTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 10 WTX-B

$64.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	O-Ring Material	na
Body Material	Brass	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Shape	Straight	Connection 4 Tube Outside Diameter	na
Connection Type	37° Flare	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Size	Male 37° Flare Bulkhead
Connection 2 Tube Outside Diameter	5/8 inch	Connection 3 Size	na
Connection 4 Size	na	Maximum Dynamic Pressure	3300 psi
Connection 1 Size	Male 37° Flare	Connection 3 Tube Outside Diameter	na
Connection 3 Thread Size	na	Specifications Met	SAE J514
