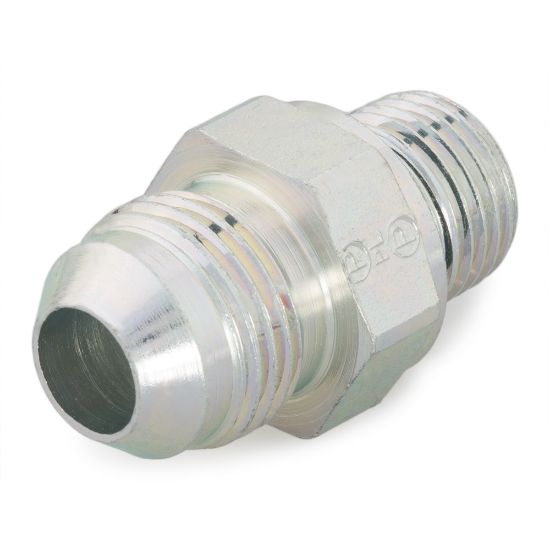

10M22F82EDMXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 35 days
Partner Available:	Backordered

SKU 10M22F82EDMXSS

$324.30/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	37° Flare
Division	Tube Fittings Division	Connection 2 Thread Size	na
Connection 2 Size	Male Metric EOlastic Seal	Connection 2 Tube Outside Diameter	na
Connection 3 Size	na	Connection 4 Size	na
Connection 1 Size	Male 37° Flare	Maximum Dynamic Pressure	5000 psi
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	O-Ring Material	90 Durometer Nitrile
Body Material	Stainless Steel	Shape	Straight
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
