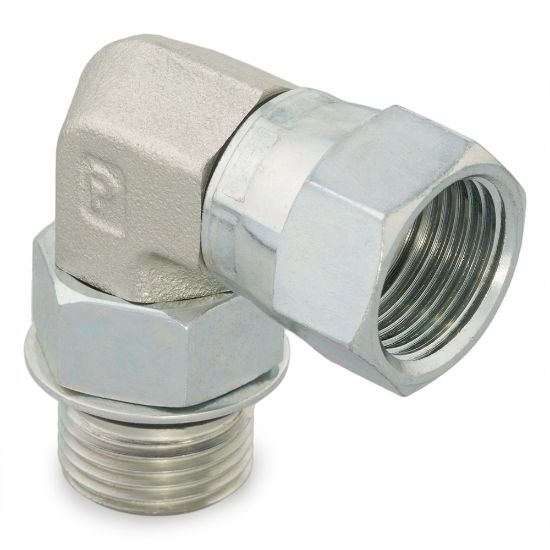

12 AOEX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 12 AOEX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 12 AOEX6-S
Price: 47.38 USD
Availability: LimitedAvailability

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:

1 Limited Stock

Joplin, MO

Partner Available:

41 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12 AOEX6-S

$47.38/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Size	na
Connection 4 Size	na	Connection 1 Size	Female 37° Flare Swivel
Maximum Dynamic Pressure	5000 psi	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	Connection 3 Thread Size	na
Dimensional Weight	0.12464028776978417 lb	O-Ring Material	90 Durometer Nitrile
Connection 1 Tube Outside Diameter	18, 20 mm	Body Material	Steel
Shape	90° Elbow	Connection 4 Tube Outside Diameter	na
Connection Type	Tube to SAE-ORB	Division	Tube Fittings Division
Connection 2 Size	Male SAE-ORB	Connection 2 Thread Size	1 1/16-12 inch
Connection 2 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
