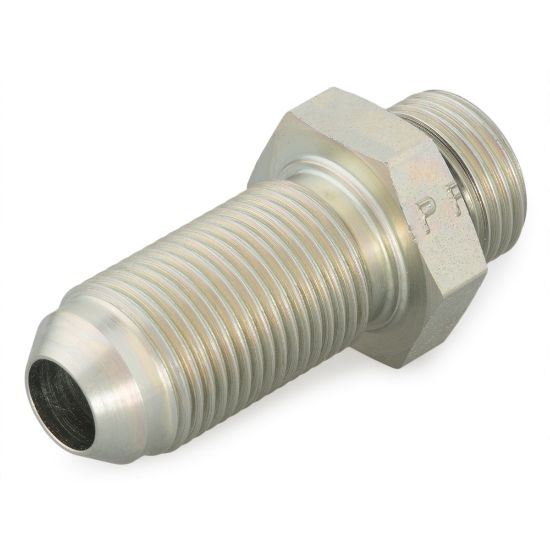

12 WF5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 12 WF5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 12 WF5OX-S
Price: 64.86 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:

6 in stock

Joplin, MO	3
COLUMBIA, MO	1
Kansas City, KS	1
Peoria, IL	1

Partner Available:

45 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12 WF5OX-S

$64.86/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J514
Connection 3 Tube Outside Diameter	na	Dimensional Weight	0.12464028776978417 lb
O-Ring Material	90 Durometer Nitrile	Connection 1 Tube Outside Diameter	3/4 inch
Body Material	Steel	Connection 4 Tube Outside Diameter	na
Shape	Straight	Connection Type	37° Flare
Connection 2 Size	Male SAE Straight Thread	Division	Tube Fittings Division
Connection 2 Thread Size	1 1/16-12 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Size	na	Maximum Dynamic Pressure	5000 psi
Connection 1 Size	Male 37° Flare Bulkhead	Connection 4 Size	na
Connection 3 Thread Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
