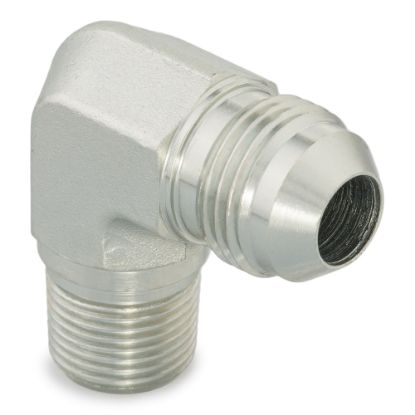

12F3MXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 12F3MXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 12F3MXS
Price: 19.11 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:

14 in stock

WICHITA, KS	3
Kansas City, KS	3
Springfield, MO	2
COLUMBIA, MO	2
Peoria, IL	2
Olivette, MO	2

Partner Available:

64 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12F3MXS

$19.11/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J514
Connection 3 Tube Outside Diameter	na	Dimensional Weight	0.07491007194244605 lb
O-Ring Material	na	Connection 1 Tube Outside Diameter	18, 20 mm
Connection 4 Tube Outside Diameter	na	Shape	Straight
Body Material	Steel	Connection Type	Tube to BSPT with Metric Hex
Connection 2 Size	Male BSPT	Division	Tube Fittings Division
Connection 2 Thread Size	3/4-14 inch	Connection 3 Size	na
Connection 2 Tube Outside Diameter	na	Maximum Dynamic Pressure	2300 psi
Connection 1 Size	Male 37° Flare	Connection 4 Size	na
Connection 3 Thread Size	na
