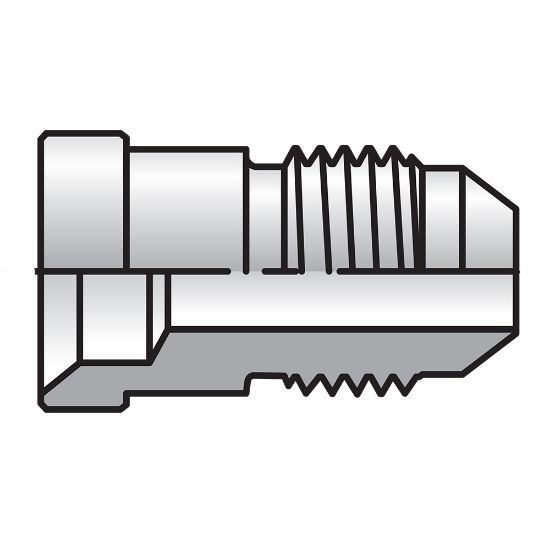

8-4 TRTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 26 days
Partner Available:	4 in stock

SKU 8-4 TRTX-B

$50.77/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	12 mm	Connection 4 Tube Outside Diameter	na
Shape	Straight	O-Ring Material	na
Body Material	Brass	Connection 2 Thread Size	na
Connection 2 Size	Male 37° Flare	Division	Tube Fittings Division
Connection Type	37° Flare	Connection 1 Size	Female 37° Flare No Nut
Maximum Dynamic Pressure	3300 psi	Connection 3 Size	na
Connection 2 Tube Outside Diameter	1/4 inch	Connection 4 Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
