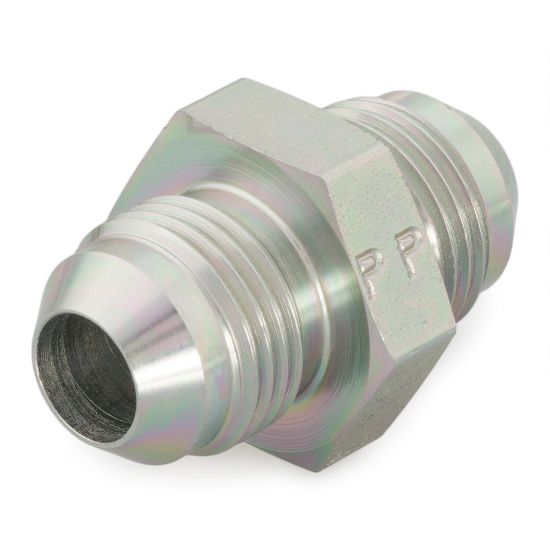

8 LHTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 8 LHTX-B

$71.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	Male 37° Flare
Connection Type	37° Flare	Division	Tube Fittings Division
Connection 4 Tube Outside Diameter	na	Connection 3 Size	na
Connection 4 Size	na	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	12 mm	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	Connection 3 Thread Size	na
Maximum Dynamic Pressure	3300 psi	Connection 1 Size	Male 37° Flare
O-Ring Material	na	Connection 1 Tube Outside Diameter	1/2 inch
Body Material	Brass	Shape	Straight
