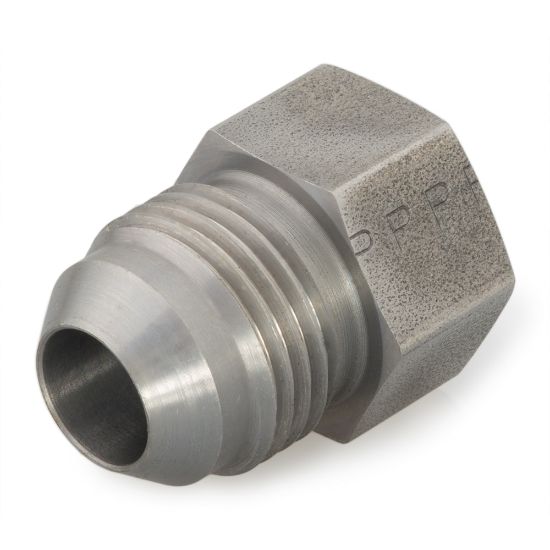

8 XHB3-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 8 XHB3-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 8 XHB3-SS
Price: 12.05 USD
Availability: LimitedAvailability

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:

2 Limited Stock

TOPEKA, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8 XHB3-SS

$12.05/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	12 mm
Body Material	Stainless Steel	Shape	Straight
Connection 4 Tube Outside Diameter	na	O-Ring Material	na
Connection 2 Size	Female Braze Socket	Division	Tube Fittings Division
Connection Type	37° Flare	Maximum Dynamic Pressure	6000 psi
Connection 1 Size	Male 37° Flare	Connection 4 Size	na
Connection 3 Size	na	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	1/2 inch	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514	Connection 3 Thread Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
