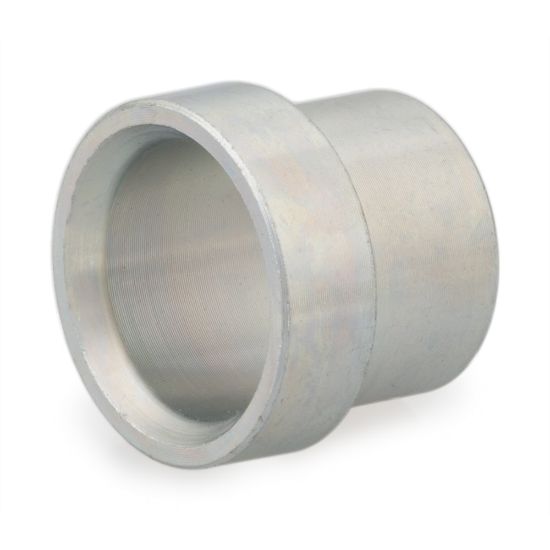

TXS30 - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 148 days
Partner Available:	Backordered

SKU TXS30

$12.67/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	ISO 8434-3 psi
Connection 4 Size	na	Connection 3 Size	na
Connection 2 Thread Size	na	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Specifications Met	na
Connection 1 Size	37° Flare	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	30 mm	Shape	Sleeve
Connection 4 Tube Outside Diameter	na	Body Material	Steel
O-Ring Material	na	Division	Tube Fittings Division
Connection 2 Size	na	Connection Type	37° Flare

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
