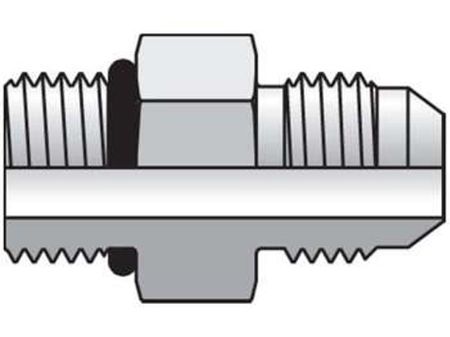

Triple-Lok 37° Straight F5X
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Pkg Qty/UOM | Pkg Qty | End 1 | End 2 | Material | Parker Group | Parker Division | Configuration Type | Material | Inch/Metric | End 1 | End 1 Type | Series | Tube Fitting/Adapter Type | End 2 Type | Trade Name | Configuration Sub-Type | End 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 F5X-S | Backordered | Backordered | $8.66/each | EA | EA | 25 EA | 25 | 3/4 Inch | 1 1/16-12 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/4 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 1 1/16-12 UN/UNF-2A | |
| 14 F5X-S | Backordered | Backordered | $15.40/each | EA | EA | 5 EA | 5 | 7/8 Inch | 1 3/16-12 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 7/8 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 1 3/16-12 UN/UNF-2A | |
| 4 F5X-S | Backordered | 273 in stock | $4.58/each | EA | EA | 50 EA | 50 | 1/4 Inch | 7/16-20 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1/4 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 7/16-20 UN/UNF-2A | |
| 6 F5X-S | Backordered | Backordered | $3.38/each | EA | EA | 50 EA | 50 | 3/8 Inch | 9/16-18 UN/UNF-2A | Steel | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/8 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 9/16-18 UN/UNF-2A | |
| 6 F5X-SS | Backordered | 9 in stock | $22.50/each | EA | EA | 15 EA | 15 | 3/8 Inch | 9/16-18 UN/UNF-2A | Stainless Steel | Fluid Connector | Tube Fitting | Straight | Stainless Steel | Inch | 3/8 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 9/16-18 UN/UNF-2A | |
| 8 F5X-SS | Backordered | 3 in stock | $29.24/each | EA | EA | 15 EA | 15 | 1/2 Inch | 3/4-16 UN/UNF-2A | Stainless Steel | Fluid Connector | Tube Fitting | Straight | Stainless Steel | Inch | 1/2 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 3/4-16 UN/UNF-2A |
