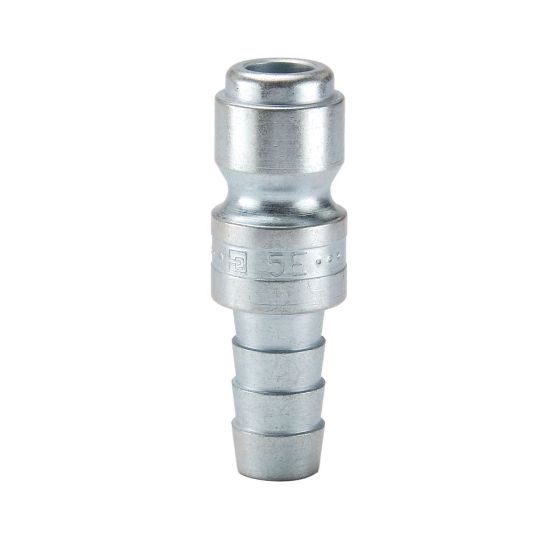

5F - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	6 in stock

SKU 5F

$16.85/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Material	Steel	Connection Thread Size (inch)	na
Hose I.D. (inch)	1/2	Connection Type	Hose barb
Body Size (inch)	1/2	Division	Quick Coupling Division
Application	Pneumatic	Product Type	Manual Connect
Valve Type	Unvalved	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.01335431654676259 lb	Hex Size	na inch
Plating Type	Zinc with clear trivalent chromate	Interchange Type	Tru-Flate design
Connection Type	Manual Connect	Max. Operating Pressure	300 psi
Max. Operating Temperature	250 °F	Min. Operating Temperature	-40 °F
Parker Division	Quick Coupling	Parker Group	Fluid Connector
Valve Type	Unvalved	Interchange Type	Tru-Flate Design
Plating Type	Zinc With Clear Trivalent Chromate
