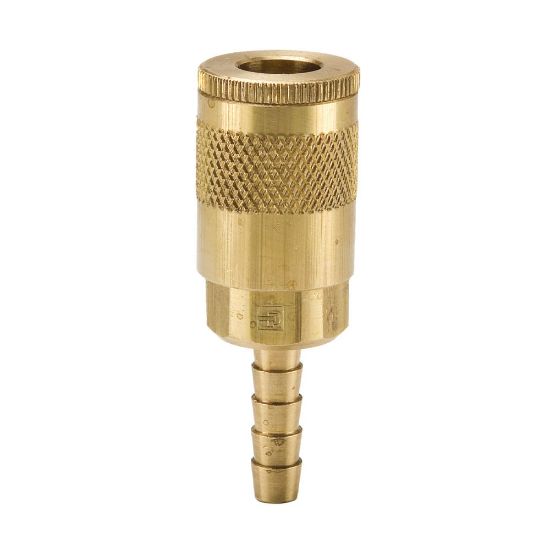

B10-5B - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Name: B10-5B - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series
SKU: B10-5B
Price: 25.87 USD
Availability: InStock

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

18 in stock

Olivette, MO	14
Kansas City, KS	4

Partner Available:

130 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B10-5B

$25.87/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Hose I.D. (inch)	3/8	Body Size (inch)	1/4
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Connection Type	Hose barb	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Product Type	Manual Connect
Valve Type	Tubular	Division	Quick Coupling Division
Application	Pneumatic	Dimensional Weight	0.026658673061550762 lb
Maximum Operating Pressure	300 psi	Interchange Type	Tru-Flate design
Plating Type	na	Hex Size	na inch
Minimum Operating Temperature	-40 °F
