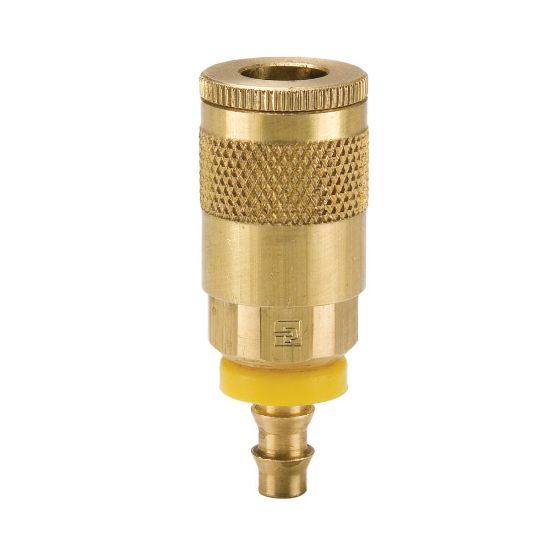

B10-5BP - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Name: B10-5BP - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series
SKU: B10-5BP
Price: 27.75 USD
Availability: InStock

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

9 in stock

Kansas City, KS	4
Olivette, MO	4
Springfield, MO	1

Partner Available:

123 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B10-5BP

$27.75/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Hose I.D. (inch)	3/8	Body Size (inch)	1/4
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Division	Quick Coupling Division
Valve Type	Tubular	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	300 psi
Interchange Type	Tru-Flate design	Hex Size	na inch
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.026658673061550762 lb
Application	Pneumatic	Product Type	Manual Connect
Plating Type	na
