*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

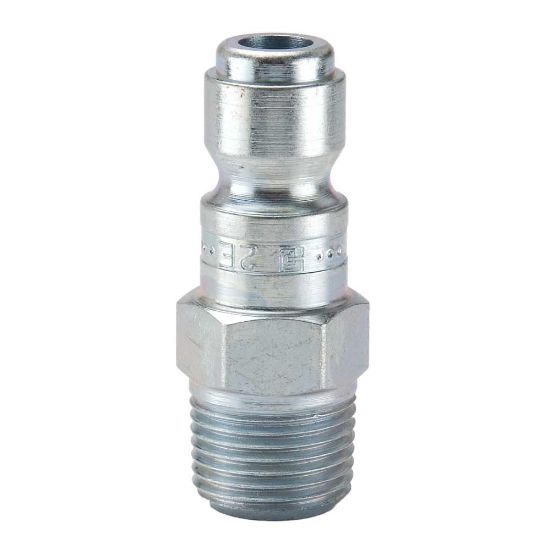

S2C - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S2C

$23.42/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Hose I.D. (inch)	na	Coupling Half	Male Nipple
Body Material	Stainless steel (303)	Connection Thread Size (inch)	1/4 - 18
Connection Type	Male NPTF	Application	Pneumatic
Dimensional Weight	0.01335431654676259 lb	Maximum Operating Pressure	300 psi
Interchange Type	Tru-Flate design	Valve Type	Unvalved
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Plating Type	na	Product Type	Manual Connect
Hex Size	0.56 inch	Minimum Operating Temperature	-40 °F

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
