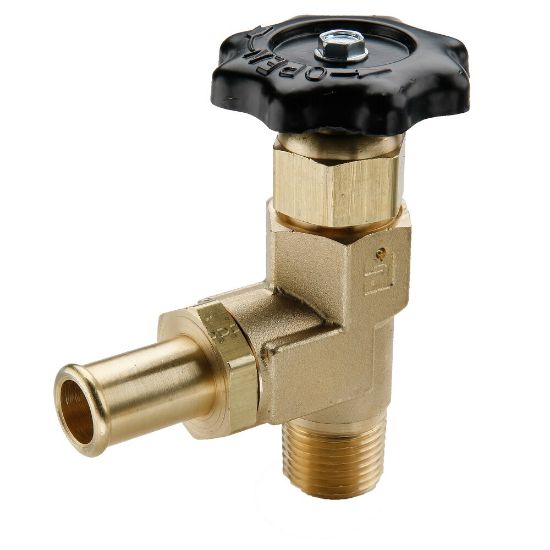

SV404P-12-8 - Truck Valves

Parker's truck valves are a robust, all brass construction with metal-to-metal seats for high heat/fluid compatibility.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	11 in stock

SKU SV404P-12-8

$109.00/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	na
Connection 1 Thread Size (inch)	na	Connection 2 Style	Male Pipe
Connection 2 Thread Size (inch)	1/2	Connection 1 Style	Hose Barb
Connection 1 Hose I.D. (inch)	3/4	Shape	Right Angle
Style	Hose to Pipe	Handle	Round
Division	Fluid System Connectors Division	Maximum Operating Pressure	150 psi
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-34 °C
Body Material	Brass	Dimensional Weight	0.5518884892086331 lb
Stem Material	Brass
