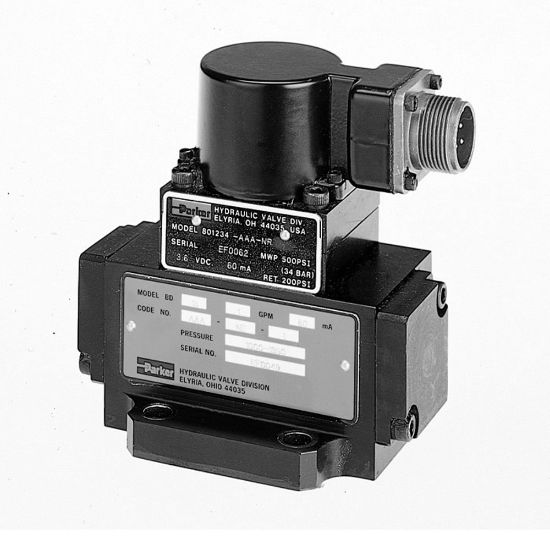

BD15AAANE5 - Two-Stage Torque Motor Servovalve – BD Series

Parker’s BD series servovalves provide high resolution in the control of position, velocity and force in motion control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 168 days
Partner Available:	Backordered

SKU BD15AAANE5

$7,178.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate (gpm)	5
Size	S04	Current (amps)	60 (Standard)
Operating Pressure	1000 - 1350	Response Time	10 to 90%, 26 ms ms
Minimum Operating Temperature	30 °F	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	5 Gal/min	Maximum Operating Temperature	180 °F
Options	Standard Valve	Seal Material	Nitrile
Electrical Connection	C2B (Standard)	Resistance	60 Ω
Body Material	Aluminum	Valve Type	Servo Valve
Filter Efficiency Rating	ISO Code 17/15/12	Maximum Operating Pressure	1350 psi
Actuation Type	Hydraulic Pressure
