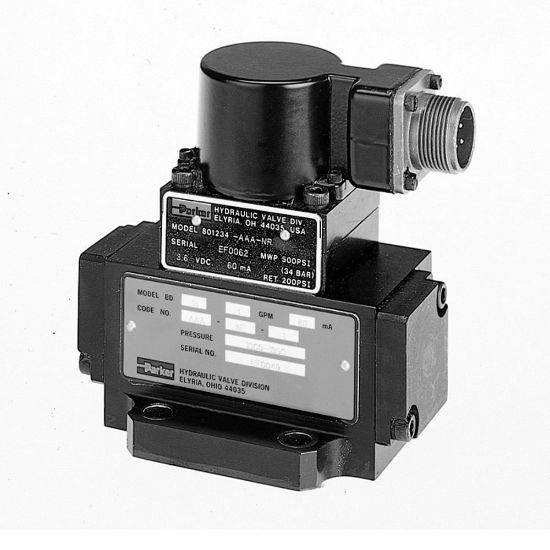

BD30JAMND40 - Two-Stage Torque Motor Servovalve – BD Series

Parker’s BD series servovalves provide high resolution in the control of position, velocity and force in motion control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 168 days
Partner Available:	Backordered

SKU BD30JAMND40

$13,744.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Pressure	1400 - 1950
Size	S77	Flow Rate (gpm)	40
Current (amps)	60 (Standard)	Minimum Operating Temperature	30 °F
Options	Explosion Proof	Electrical Connection	Explosion Proof
Response Time	30 ms 10 to 90%	Valve Type	Servo Valve
Seal Material	Nitrile	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	40 Gal/min	Maximum Operating Temperature	180 °F
Maximum Operating Pressure	1950 psi	Actuation Type	Hydraulic Pressure
Filter Efficiency Rating	SAE Class 3 or better	Resistance	60 Ω
Body Material	Aluminum
