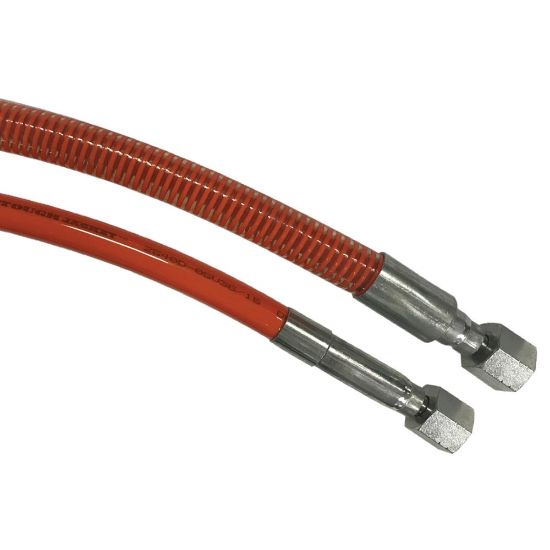

Picture of 2440N-08V30/12 - Ultra High Pressure TOUGHJACKET™ Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2440N-08V30/12 - Ultra High Pressure TOUGHJACKET™ Hose

TOUGHJACKET PVC-free water blast hose features a compact O.D. that’s up to 25% smaller than PVC-covered hoses, creating an ergonomic advantage for operators.
Manufacturer: Parker
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:Backordered
SKU 2440N-08V30/12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-8
Maximum Working Pressure (psi)20,300DivisionParflex Division
Size-8Hose Inner Tube MaterialPolyoxymethylene (POM)
Design Factor2.5:1Compatible FittingLX Series
Maximum Operating Temperature70 °CInside Diameter12.7 mm
Maximum Operating Pressure140 MPaWeight1.21 kg/m
ApplicationHydrodemolitionHose Reinforcement Material4 Spirals of Maximum Tensile Steel Wire
Specifications MetDIN 1829-2Outside Diameter28.6 mm
Hose Cover TypeToughJACKET™MediaWater
Minimum Operating Temperature-10 °CMinimum Bend Radius8 inch
Cover MaterialPolyurethane
