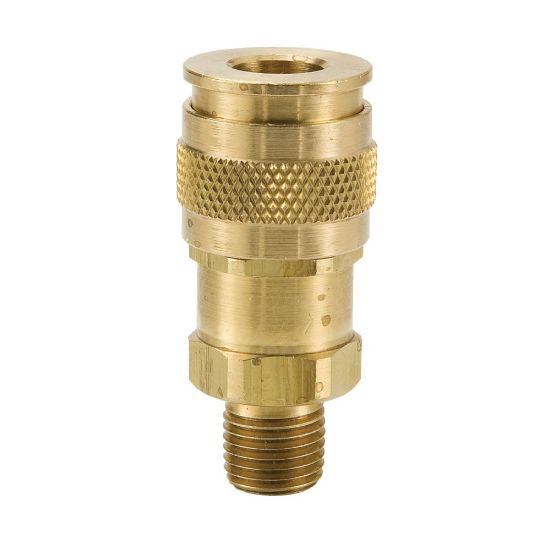

UC-251-4MP - Universal Interchange, Quick Connect Air Couplers - UC Series

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	227 in stock

SKU UC-251-4MP

$39.65/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Style	Male
Connection Type	NPTF	Connection Thread Size (inch)	1/4 - 18
Division	Quick Coupling Division	Application	Air
Media	Low pressure fluids and compressed air	Valve Type	Tubular
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Brass
Seal Material	Nitrile	Specifications Met	Connects with Industrial Interchange, 10 series (Tru-Flate), and 50 series (ARO 210) style nipples
Dimensional Weight	0.026658673061550762 lb	Sleeve Type	Push to connect
Coupling Half	Coupler	Body Size	1/4 inch
Lock Type	Locking balls

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
