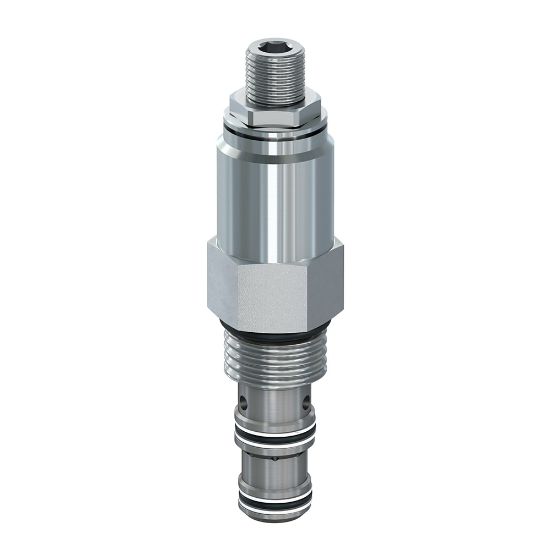

RU101K10CV - Unloading Relief Valves

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU RU101K10CV

$212.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Adjustment Mechanism	Knob	Maximum Flow Rate	1 GAL/MIN, 3.75 L/MIN
Seal Material	Fluorocarbon	Maximum Tank Pressure	3000 psi
Maximum Inlet Pressure Rating	245 bar	Maximum Pressure Setting	69 bar
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Fluorocarbon
Function	Unloading Relief Valve	Adjustment Mechanism	Knob
Minimum Operating Temperature	-15 °F	Cavity Size	C10-3
Flow Rate	1 Gal/min	Pressure Control Range	100-1000 psi
Actuation Type	Pressure Sensing	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Body Material	N/A	Weight	0.23 kg
Maximum Operating Pressure	245 bar	Installation Torque	16 lb-ft
Standard Setting Pressure	34.5 bar	Division	Hydraulic Systems Division
Maximum Operating Temperature	+400 °F	Leak Rate	10 (port 2 to 3), 60 (port 1 to 2) drops/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	3.75 L/min
