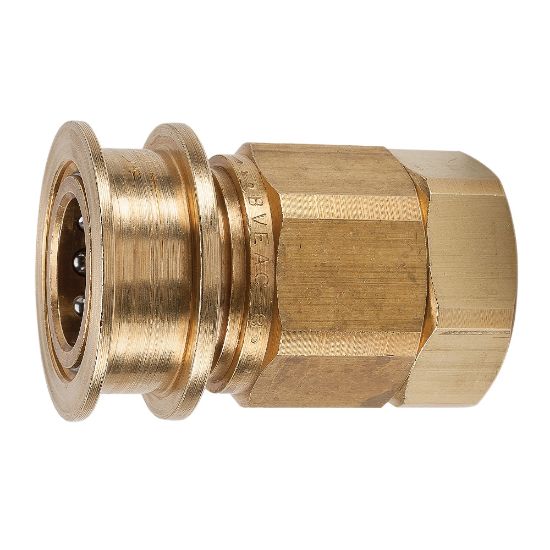

BVEAC8-8F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU BVEAC8-8F

$93.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/2	Coupling Half	Female Coupler
Connection Thread Size (inch)	1/2 - 14	Connection Type	Female NPTF
Maximum Operating Pressure	1500	Application	Vacuum and medium pressure hydraulics
Plating Type	na	Hex Size	1.19 inch
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Seal Material	Nitrile
Product Type	Manual Connect	Body Material	Brass
Vacuum Pressure Rating	29.7 Inch-Hg	Valve Type	Poppet
