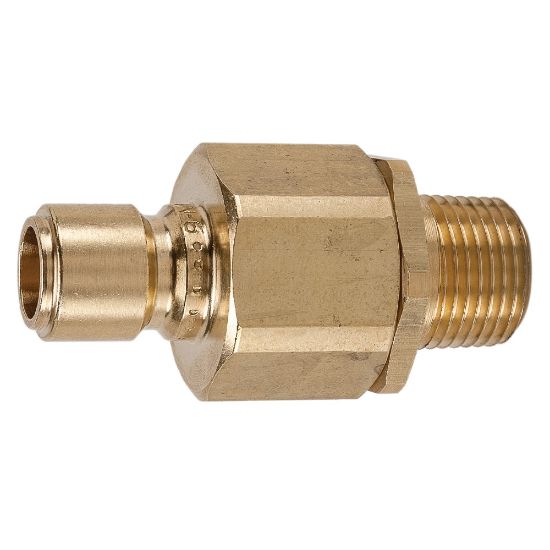

BVEAN8-8M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU BVEAN8-8M

$81.16/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/2	Coupling Half	Male Nipple
Connection Type	Male NPTF	Connection Thread Size (inch)	1/2 - 14
Maximum Operating Pressure	1500	Valve Type	Poppet
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Vacuum Pressure Rating	1/2 Inch-Hg	Body Material	Brass
Hex Size	1.19 inch	Minimum Operating Temperature	-40 °F
Application	Vacuum and medium pressure hydraulics	Seal Material	Nitrile
Plating Type	na	Product Type	Manual Connect
