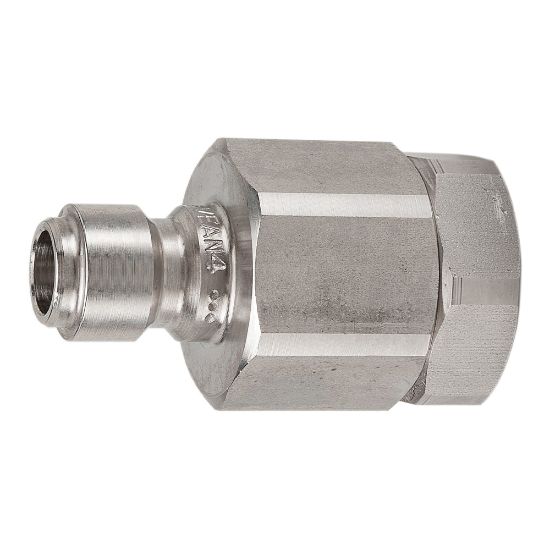

SPEAN4-4F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU SPEAN4-4F

$45.01/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000
Connection Thread Size (inch)	1/4 - 18	Body Size (inch)	1/4
Body Material	Stainless Steel	Connection Type	Female NPSF
Coupling Half	Male Nipple	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Valve Type	Unvalved
Seal Material	na	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Hex Size	0.62 inch
Plating Type	na	Application	Vacuum and medium pressure hydraulics
Vacuum Pressure Rating	1/4 Inch-Hg	Body Material	Stainless Steel
