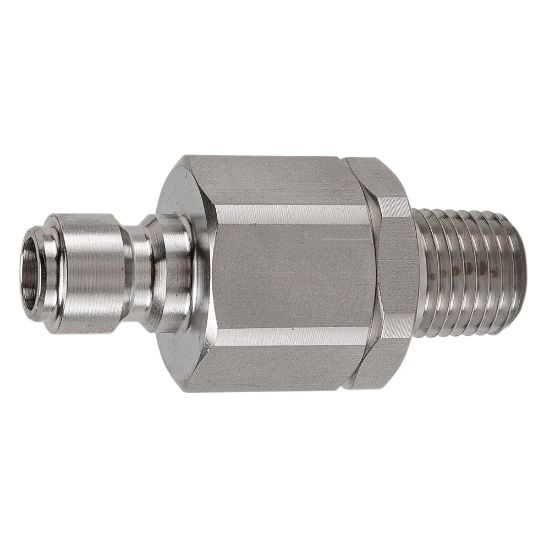

SPEAN4-4M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	6 in stock

SKU SPEAN4-4M

$35.72/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Body Material	Stainless Steel	Connection Type	Male NPSF
Body Size (inch)	1/4	Coupling Half	Male Nipple
Maximum Operating Pressure	3000	Hex Size	0.56 inch
Minimum Operating Temperature	-40 °F	Application	Vacuum and medium pressure hydraulics
Vacuum Pressure Rating	1/4 Inch-Hg	Body Material	Stainless Steel
Valve Type	Unvalved	Seal Material	na
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Plating Type	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
