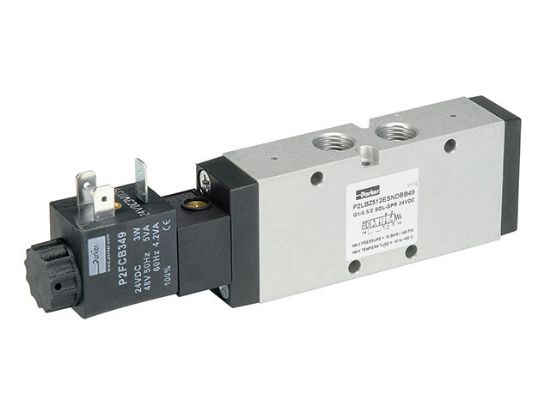

P2LBZ592ESNDBB53 - Viking Lite Series Single Solenoid 4-way 2-position Valve

Name: P2LBZ592ESNDBB53 - Viking Lite Series Single Solenoid 4-way 2-position Valve
SKU: P2LBZ592ESNDBB53
Price: 68.26 USD
Availability: InStock

Single Solenoid, 4-way, 2-position, Spring Return

Availability:

17 in stock

Decatur, IL	15
Olivette, MO	2

Partner Available:

139 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU P2LBZ592ESNDBB53

$68.26/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Port	1/4 NPT
Pilot Supply	Internal	CV Factor	1.5
Override Type	Non-locking	Pkg Qty	1
Operator Type Detail	Single	Offset Return Type	Spring Return
Solenoid Voltage	120VAC	UOM	EA
Parker Group	Automation	Parker Division	Pneumatic
Port	1/4 NPT	Port Inch/BSP	NPT
Pneumatic Valve Type	Inline Valve	Valve Passages	4-way
Valve Positions	2-position	Offset Return Type	Spring Return
Series	Viking Lite	Trade Name	Viking Lite
Operator Type	Solenoid	Operator Type Detail	Single
Solenoid Voltage	120VAC	Pilot Supply	Internal
Override Type	Non-locking	CV Factor	1.5
Operating Temperature	14°F to 122°F (-10°C to 50°C)	Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
