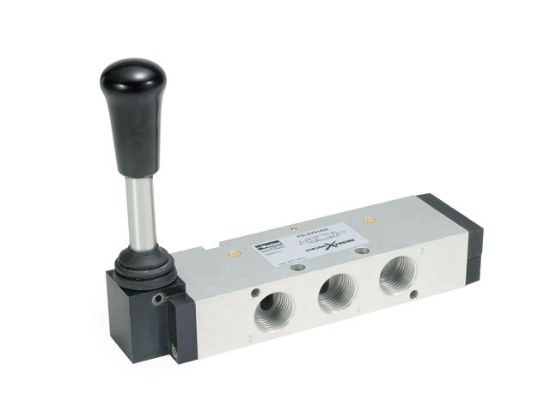

P2LAX591VV - Viking Xtreme Series Manual/Mechanical Valve - 4-way 2-position Inline Perpendicular Lever

Viking Xtreme Series Manual/Mechanical Valve - 4-way 2-position Inline Perpendicular Lever

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	1 Limited Stock

SKU P2LAX591VV

$134.68/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Offset Return Type	Detent
UOM	EA	CV Factor	0.7
Port	1/8 NPT	Pkg Qty	1
Operator Type Detail	Inline Perpendicular Lever	Port Inch/BSP	NPT
Pneumatic Valve Type	Manual/Mechanical	Operating Temperature	-40°F to 140°F (-40°C to 60°C)
Parker Division	Pneumatic	Port	1/8 NPT
Supply Pressure Range	Vacuum to 232 PSI (Vacuum to 16 bar)	Operator Type Detail	Inline Perpendicular Lever
Offset Return Type	Detent	Valve Passages	4-way
Operator Type	Manual/Mechanical	Valve Positions	2-position
Parker Group	Automation	Series	Viking Xtreme
CV Factor	0.7
