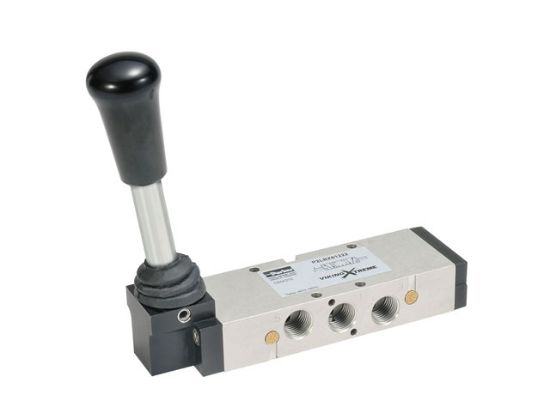

P2LDX69422 - Viking Xtreme Series Manual/Mechanical Valve - 4-way 3-position Inline Perpendicular Lever

Viking Xtreme Series Manual/Mechanical Valve - 4-way 3-position Inline Perpendicular Lever

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	7 in stock

SKU P2LDX69422

$475.44/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Center Condition	All Ports Blocked
CV Factor	2.7	Operator Type Detail	Inline Perpendicular Lever
Port	1/2 NPT	Pkg Qty	1
UOM	EA	Offset Return Type	Detent
Parker Group	Automation	Parker Division	Pneumatic
Port Inch/BSP	NPT	Port	1/2 NPT
Operator Type	Manual/Mechanical	Operator Type Detail	Inline Perpendicular Lever
Valve Passages	4-way	Valve Positions	3-position
Offset Return Type	Detent	Center Condition	All Ports Blocked
CV Factor	2.7	Series	Viking Xtreme
Operating Temperature	-40°F to 140°F (-40°C to 60°C)	Supply Pressure Range	Vacuum to 174 PSI (Vacuum to 12 bar)
