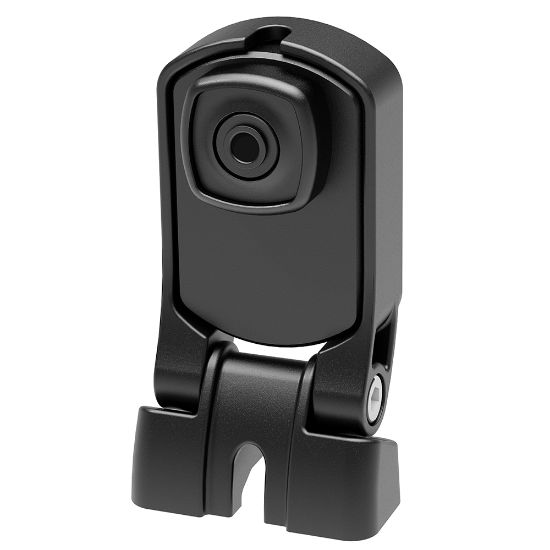

20085106 - Vision System Camera - IQAN-SV

Parker's IQAN-SV is an Ethernet (IP) camera that provides a vision system to vehicles using the IQAN-MD4 family of master display modules. This camera may be used as a mobile vehicle blind spot monitor or rear view camera.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	4 in stock

SKU 20085106

$1,962.42/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Model Number	IQAN-SV
Ingress Protection Rating	IP67	Communication Interface	Ethernet 100 base-TX
Weight	0.21 kg	Power Supply Voltage	9 to 32 VDC
Accessories Included	Ethernet Camera	Maximum Operating Temperature	85 °C
Division	Electronic Motion and Controls Division	Current	60 mA (28 VDC)
Minimum Operating Temperature	-40 °C
