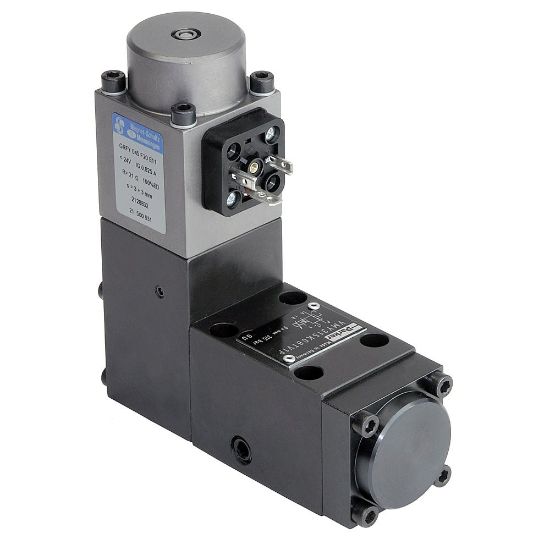

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

VMY315K10NN1P

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU VMY315K10NN1P

$3,868.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Hydraulics
Media	Hydraulic Oil	Function	Proportional
Filter Efficiency Rating	ISO 4406; 18/16/13	Application	Industrial Hydraulic
Port Connection	NG10 / CETOP 05	For Fluid Type	Hydraulic Oil
Operation Type	Pilot	Standard	ISO 7368
Flow Rate	160 lpm	Material	Steel
Pilot Inlet / Drain Locations	315 bar	Maximum Pressure Setting	315 bar
Product Series	Pressure valve	Seal Material	NBR
Marking	Standard	Minimum Fluid Temperature	-25 °C
Pressure Control Range	Internal / External	Maximum Operating Temperature	50 °C
Minimum Ambient Temperature	-25 °C	Mounting Option	Din 24340 / ISO 4401 / Cetop Rp121 / NFPA
Maximum Ambient Temperature	60 °C	Valve Type	Proportional Pressure Reducing Valve
Minimum Operating Temperature	-20 °C	Maximum Fluid Temperature	70 °C
Actuation Type	Proportional	Mounting Position	Unrestricted
