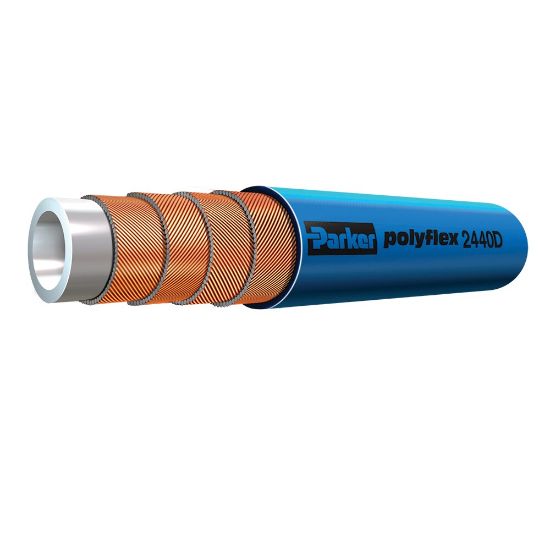

2448D-025V35-TC - Water Jetting Hose - 2440D/2448D

Parker Tough Cover Ultra High Pressure Water Jetting Hose handles pressures up to 43,000 psi (3000 bar)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	40 in stock

SKU 2448D-025V35-TC

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/32
Maximum Working Pressure (psi)	43,645	Minimum Bend Radius	120 mm
Minimum Operating Temperature	14 °F	Cover Material	Polyamide (PA)
Application	Construction Equipment	Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire
Specifications Met	DIN 1829-2	Design Factor	2.16:1
Maximum Operating Temperature	158 °F	Hose Inner Tube Material	Polyoxymethylene (POM)
Compatible Fitting	LX Series	Media	Chemicals
Division	Parflex Division	Inside Diameter	4 mm
Maximum Operating Pressure	3010 bar	Weight	0.22 kg/m
Outside Diameter	9.9 mm
