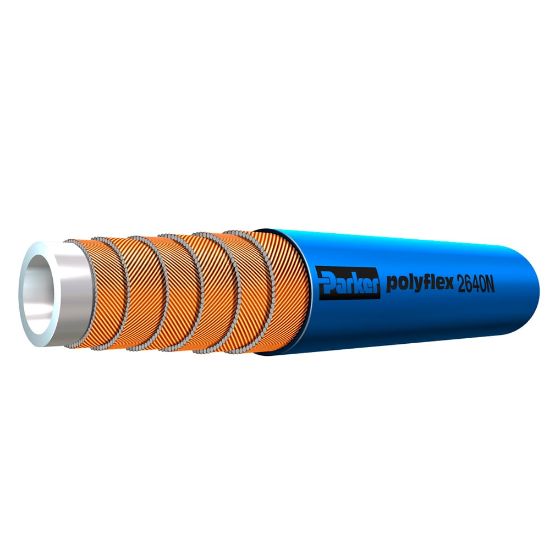

2640N-08V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2640N-08V32

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Maximum Working Pressure (psi)	26,100	Compatible Fitting	JX Series
Maximum Operating Temperature	158 °F	Hose Inner Tube Material	Polyamide (PA)
Design Factor	2.5:1	Media	Chemicals
Division	Parflex Division	Size	-8
Maximum Operating Pressure	180 MPa	Weight	1.37 lb/ft
Outside Diameter	0.960 inch	Inside Diameter	1/2 inch
Minimum Operating Temperature	-10 °C	Cover Material	Polyamide (PA)
Specifications Met	DIN 1829-2	Application	Industrial Cleaning
Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire	Minimum Bend Radius	290 mm

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
