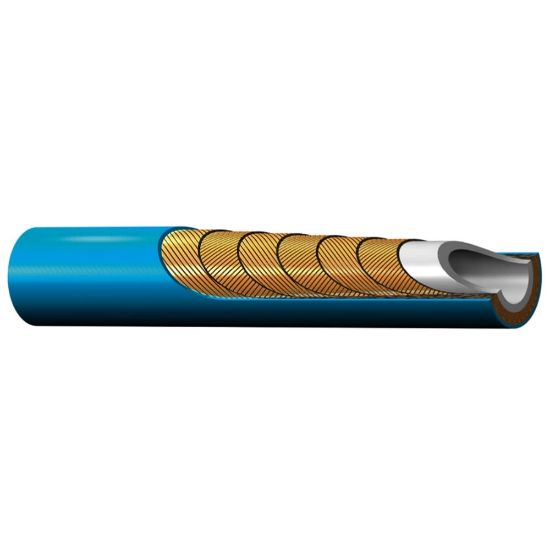

2640N-12V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2640N-12V32

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	20,300	Application	Waterblasting
Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire	Specifications Met	DIN 1829-2
Outside Diameter	33 mm	Media	Water
Cover Material	Polyamide (PA)	Minimum Operating Temperature	14 °F
Minimum Bend Radius	350 mm	Compatible Fitting	5X Series
Maximum Operating Temperature	70 °C	Size	-12
Division	Parflex Division	Hose Inner Tube Material	Polyamide (PA)
Design Factor	2.5:1	Maximum Operating Pressure	20300 psi
Weight	1.45 lb/ft	Inside Diameter	3/4 inch

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
