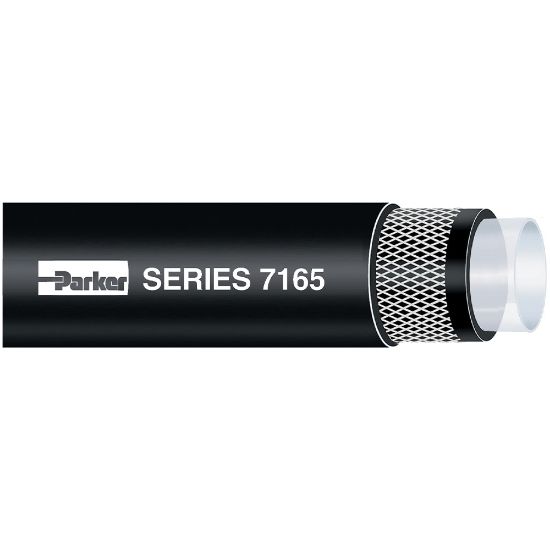

7165-50250 - WAVEMASTER™ Marine Barrier Fuel Line Hose, Series 7165

Wavemaster Marine Barrier Fuel Line Hose is designed for marine engine fuel line and venting in applications to 212°F and 100 psi, Series 7165

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1061 in stock

SKU 7165-50250

$7.17/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Cover Color	Black	Weight	0.20
Media	Fuels - Check fuel type with our catalogue chart.	Hose Inner Tube Material	Translucent
Division	Hose Products Division	Maximum Operating Temperature	212
Minimum Operating Temperature	-20	Cover Material	Nitrile/PVC
Hose Reinforcement Material	2 Plies of Textile	Minimum Bend Radius	5
Maximum Operating Pressure	7	Outside Diameter	0.800
Inside Diameter	12.7	Specifications Met	ABYC
Application	Marine

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Compliance, Certifications & Safety

EPA Certificate of Conformity--Series 7165-CURRENT YEAR (PDF)
