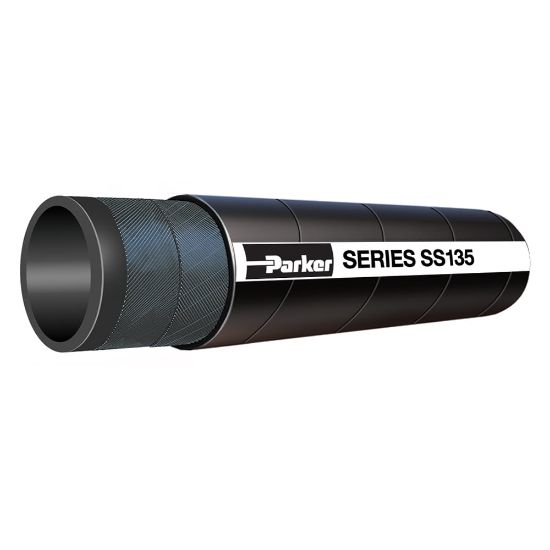

SS135-4500 - WILDCATTER® Dry Cement Material Handling Hose, Series SS135

Wildcatter Dry Cement Material Handling Hose incorporates a 1/8” thick rubber tube and is designed for gravity flow/low pressure transfer of dry abrasive materials in applications to 180°F and 65 psi, Series SS135

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	204 in stock

SKU SS135-4500

$44.33/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	4-1/2
Media	Dry Abrasive Powders (Silica)	Cover Material	Styrene Butadiene Rubber (SBR)
Hose Reinforcement Material	2 Plies of Textile	Cover Structure	Wrapped
Minimum Bend Radius	n/a	Minimum Operating Temperature	-40 °F
Application	Material Handling	Package Type	Coil
Inside Diameter	114.3 mm	Outside Diameter	127 mm
Maximum Operating Pressure	65 psi	Cover Color	Black
Weight	1.71 lb	Length per Package	100 ft
Division	Hose Products Division	Maximum Operating Temperature	180 °F
Hose Inner Tube Material	Styrene Butadiene Rubber (SBR) Static Dissipative
