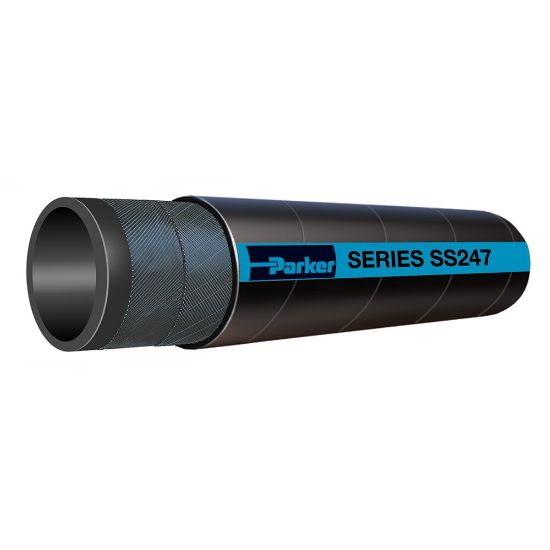

SS247-4000 - WILDCATTER® Heavy Duty Dry Cement Material Handling Hose, Series SS247

Wildcatter Heavy Duty Dry Cement Material Handling Hose incorporates a 1/4” thick rubber tube and is designed for low pressure transfer of dry abrasive materials in applications to 180°F and 75 psi, Series SS247

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	697 in stock

SKU SS247-4000

$45.35/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	4
Minimum Bend Radius	n/a	Minimum Operating Temperature	-40 °C
Cover Material	Styrene Butadiene Rubber (SBR)	Hose Reinforcement Material	2 Plies of Textile
Cover Structure	Wrapped	Application	Material Handling
Maximum Operating Pressure	5.2 bar	Outside Diameter	4.750 inch
Package Type	Coil	Inside Diameter	4 inch
Cover Color	Black	Weight	1.13 kg
Length per Package	100 ft	Division	Hose Products Division
Maximum Operating Temperature	82 °C	Hose Inner Tube Material	Styrene Butadiene Rubber (SBR) Static Dissipative
Media	Dry Abrasive Powders (Cement)
